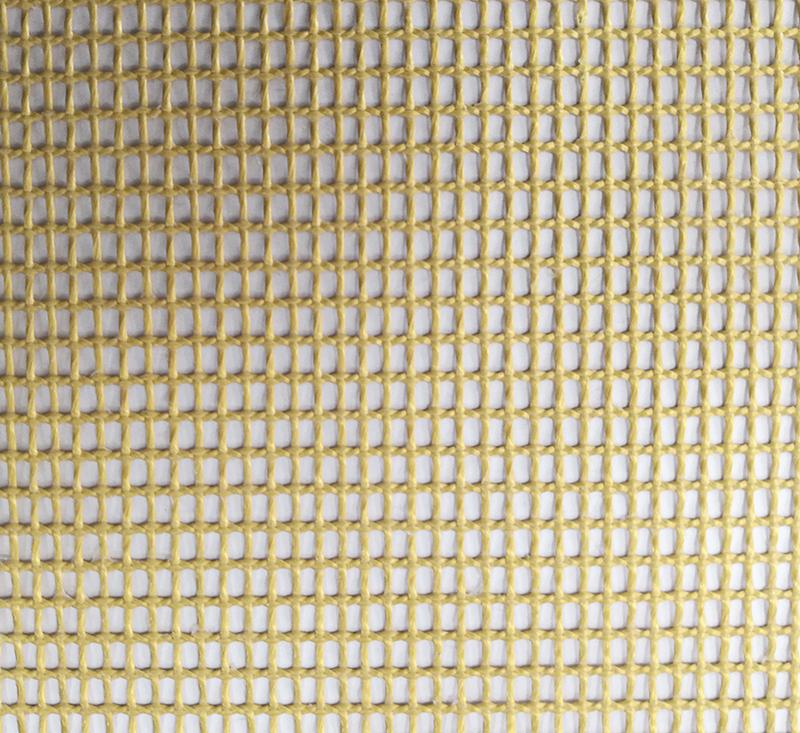

Kevlar Mesh

The Kevlar mesh consists of high-strength Kevlar fiber cloth, Kevlar fiber mesh and PTFE coating, used for drying, textile, printing and dyeing, baking, packaging, electricity and other industries. The Kevlar mesh features even fibers, high tensile strength, straight warps and wefts. The PTFE coating layer has high purity, thick coating film, outstanding adhesion resistance, good corrosion resistance, easy cleaning and delicate processing technology.

Features
  • PTFE coating film features high purity, thick and even coating film, excellent adhesion resistance and high tensile strength.
  • Highly polished. Easy to clean. Non-toxic. Corrosion resistant.
  • Continuous working temperature range: -70℃~+200℃
  • Good electrical insulation properties
  • High strength, stable dimension and not easy to deform
  • Stable running and no deviation
Applications
  • Textile finished products drying and conveying.
  • Heat shrinkage packaging machine.
  • Vegetables and fruits dryer.
  • Automatic sealing machine.
  • Filtering mesh.
Technical data
Fiber type High strength Kevlar fiber
Mesh dimensions 2mm*4mm
Thickness 0.8mm
Weight 280g/m²
Standard breadth 3.35m
Standard length 100m
Elongation <2%
Operating temperature -70℃~200℃
Tensile strength 1400N/cm

*Notes:
Keep the temperature below 500℉/260℃;
Don't use knife or sharp objects to clean the glass fabric.
Do not fold or crush.
Cleaning and storage method
Washing with clean water
Drying with towels or tissue.
Rolling or laying flat for storage.

Packaging

Packaging of different specifications can be provided upon customer's requirements.

Tags
Kevlar mesh dryer mesh
Send an Inquiry
Other Products
    1. Flat Wire Conveyor Belt
    2. Flat Wire Conveyor Belt
    1. Ladder Conveyor Belt
    2. Ladder Conveyor Belt

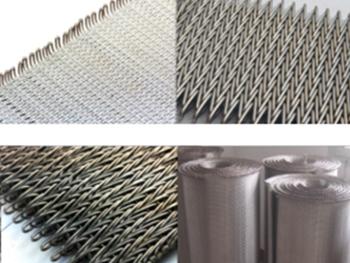

    1. Compound Balanced Weave Belt
