PU Belting

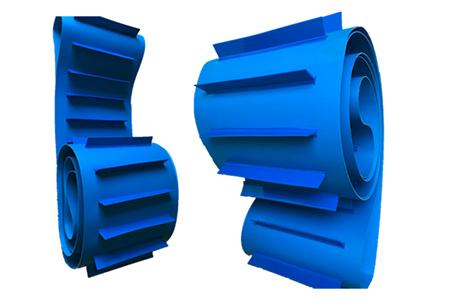

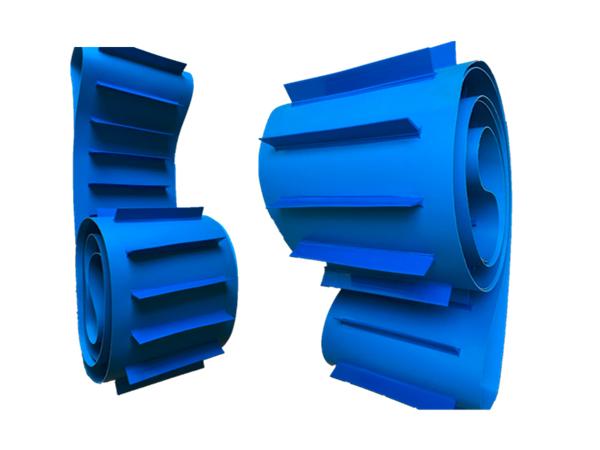

PU Conveyor Belt

Material: PU

Cleat: high frequency hot melted; spacing between cleats can be customized.

Features: food grade conveyor belt. Oil, acid and base and corrosion resistant. Antibacterial and non-sticky.

Dimension: length, width, cleat height, cleat spacing can be customized. Width up to 2m.

Details

Parameters

Colour	Sky blue	Pattern	No
Total thickness (mm)	1.8	Structure	Two fabric two rubber layer
Material	PU	Min. pulley diameter (mm)	60
Surface coating rigidity (Shore A)	75	Operating temperature (℃)	-10~+80
Tension for 1% elongation (N/mm)	12	Conveying mode (R=roller S=slab T=trough)	RS
Width (mm)	2000	Lateral stability	Yes
Number of layers	4	Tensile strength (N/mm)	≧140
Food grade	Yes	Low noise	No
Total weight (Kg/M2)	2.2	Splice	Seamless hot splicing/fastening

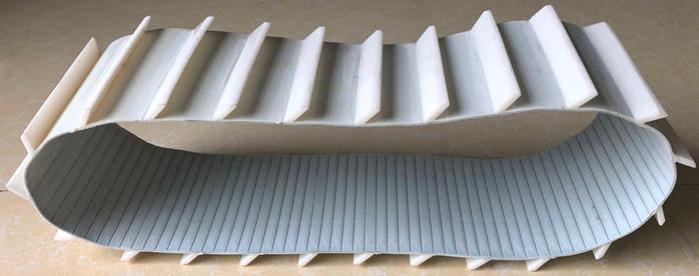

PU Timing Belt

Material: PU + steel wire

Cleat: high frequency hot melted

Features: steep inclined lifting. Oil, acid and base resistant.

Conveying angle: 45°

Dimension: thickness 5mm, height 5mm (customizable)

Flat belt or timing belt is available as base belt.

Details
