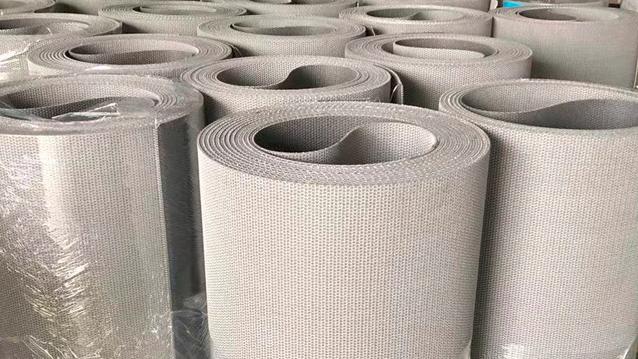

PVK Conveyor Belt

Material: PVK woven belt (soaked into the PVK coating fluid)

Processes: the woven belt soaked into the PVK paper pulp.

Features: no delamination. Abrasion and acid and base resistant. No trimmings or burrs. Low elongation. Scratch resistant.

Application: improved carcass weaving craft enhances the antiskid properties of the belt, which makes it widely used in logistics industry.

Working temperature: -10℃~+80℃

Splicing: steel fastener splicing.

Details

Specifications

Fabric type	Breaking strength(kg/cm)	Elongation at break (%)	1% load at certain elongation (N/mm)	Thickness(mm)	Fabric weight (g/2mm)
PVK100	263.60	24.70	23.69	2.78	2882.0
PVK125	297.90	21.00	22.10	3.7	3598.2
PVK125-1	207.07	14.12	21.38	3.75	3727.4
PVK150	301.90	31.90	20.20	4.45	4280.2
