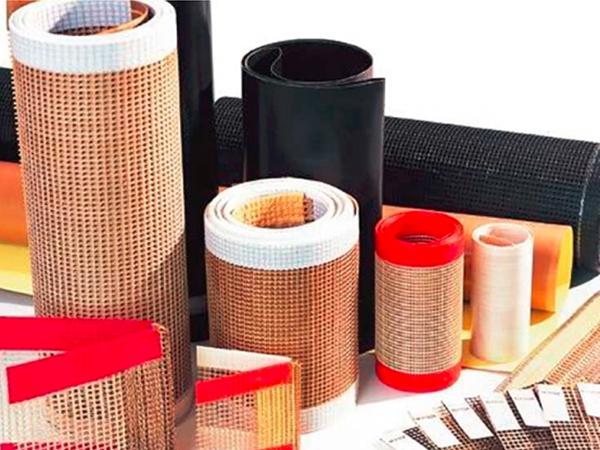

The PTEE conveyor belting is made of suspension PTFE (polytetrafluoroethylene) liquid and high-performance glass fiber immersed into it, which is a versatile composite product.

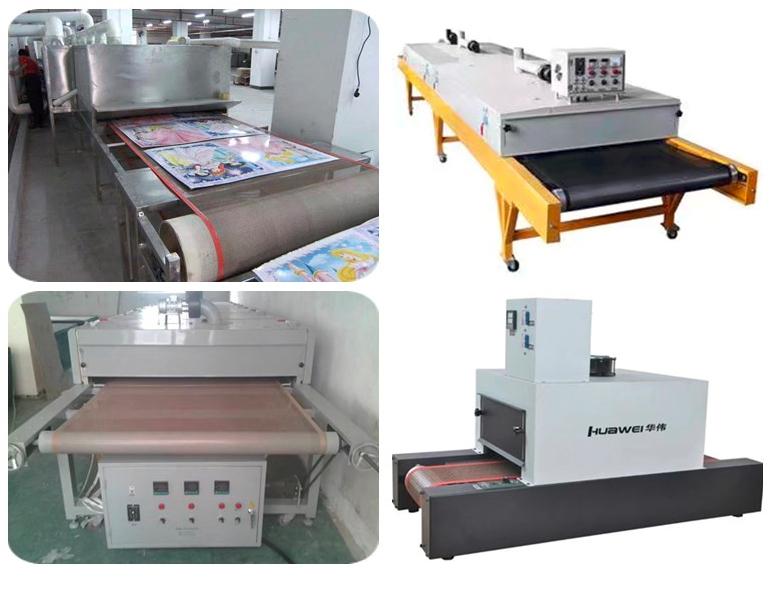

Applications

- Textile printing and dyeing: drying room conveyor belts or drying tunnel for printing drying, bleaching and dyeing cloth drying, fabric shrinkage drying, non-woven fabric drying.

-  Tensionless dryer, UV curing machine, UV drying, paper varnishing drying, plastic products printing drying and etc.

- Other: high frequency drying, microwave drying, frozen food unfreezing, baking, thermal shrinkage of packaged food, drying of items containing water, quick drying of flux ink.

Features

- The PTFE conveyor belting is weather resistant and aging resistant, suitable for applications with working environment temperature of -196℃~300℃.

- Chemical corrosion resistant. Strong acid and base resistant (including aqua regia and various organic solvent)

- Non-sticky: it's difficult for most matters to adhere to the PTFE belt surface. Easy clean and removal of stains and contaminant such as paste, resin, coating and etc.

-  Dimensional stability (elongation<5 ‰). High strength and good mechanical properties.

- The conveyor belting is fatigue resistant which allows the adoption of pulley of smaller diameter.

-  The PTFE belting is non-toxic, chemical resistant against almost all chemical matters.

- High breathability achieves less energy consumption and higher drying efficiency.


Specifications
  |  Product name  |   Fabric name  |   Gram weight (g/m2)  |   Tensile strength (N/5CM)  |
  |  Fabric  |   Finished product  |
  |  Fabric  |   Finished product  |   Warp direction  |   Weft direction  |   Warp direction  |   Weft direction  |
  |  6001(beige)  |   Plain weave fabric  |   312.54  |   390  |   400  |   222  |   2216  |   1337  |
  |  6001B(black)  |   Plain weave fabric  |   312.5  |   442.85  |   /  |   /  |   2144  |   1424  |
  |  6003(black)  |   4*4 single weft fabric  |   288.5  |   541.62  |   /  |   /  |   1513  |   2168  |
  |  6008  |   4*4 double weft fabric  |   414  |   575.62  |    |    |   1844  |   3461  |
  |  6004(beige)  |   4*4 single weft fabric  |   342.9  |   511.3  |   /  |   /  |    |    |
  |  4*4 single weft fabric  |   288.5  |   475.3  |   /  |   /  |   1449  |   2156  |
  |  6007  |   Kevlar double weft fabric  |   417.2  |   559  |   /  |   /  |   3423  |   2270  |
  |  6012(black)  |   4*4 double weft fabric  |   414  |   696  |   /  |   /  |   1501  |   3531  |
  |   |   6*6 double weft fabric  |   357  |   519.9  |   /  |   /  |   1601  |   2422.5  |
  |  6013  |   Large-sized fabric  |   272  |   363.12  |   /  |   /  |   1078  |   980  |
  |  6014  |   Plain weave fabric  |   418.2  |   436  |   /  |   /  |   1871  |   1385  |
  |  6015  |   Small-sized fabric  |   369.9  |   475.83  |   /  |   /  |   2234  |   1651  |
