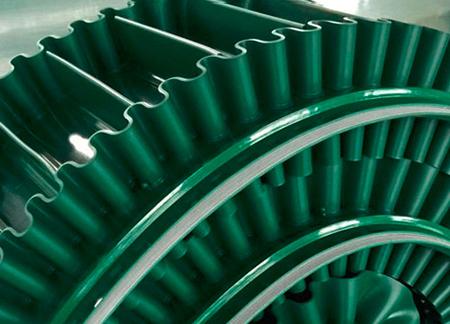

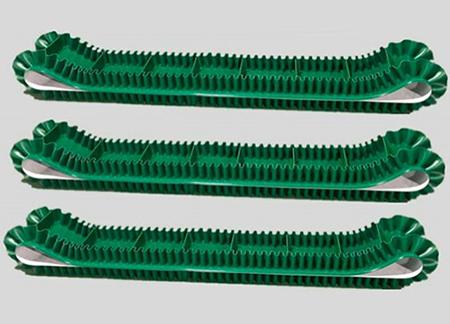

Sidewall PVC Conveyor Belt

Features: steep angle conveying, lifting

Processing: HTV

Size: maximum thickness: 3m

Color: Green, white

Parameters
Colour Green Pattern No
Total thickness (mm) 3 Structure Two fabric and two rubber ply
Material PVC Min. pulley diameter (mm) 90
Surface coating rigidity (Shore A) 75 Operating temperature (℃) -10 -+80
Tension for 1% elongation (N/mm) 12 Conveying mode (R=roller S=slab T=trough) RST
Width (mm) 3000 Lateral stability Yes
Sidewall height (mm) 10-120 Tensile strength (N/mm) ≧160
Cleat height (mm) 10-120 Low noise No
Cleats spacing Random Splice Seamless hot splicing/fastness
