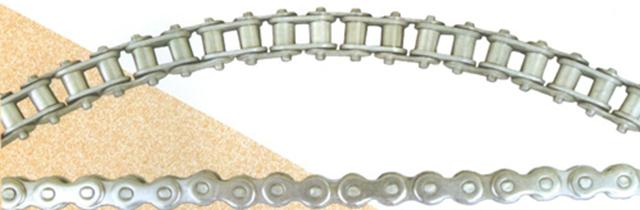

Side Bow Roller Chain

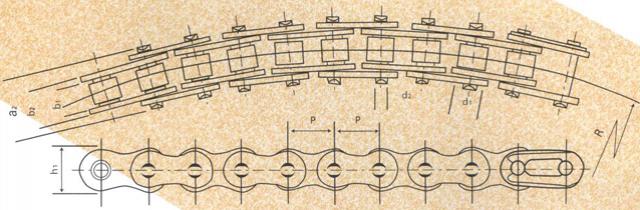

Item Pitch Roller external diameter Pin inside width Pin daimeter Plate height Pin outer width Pin length Curve radius Max. allowable load Weight Kg/m
Pin P mm d1(max) mm b1(min) mm d2(max) mm h1(max) mm b2(max) mm a2 mm R(min) mm Q(min) daN
40SB 1/2 12.70 7.92 7.85 3.45 12.33 11.18 16.6 356 900 0.57
50SB 5/8 15.875 10.16 9.4 4.37 15.35 13.84 20.8 406 1500 0.98
60SB 3/4 19.05 11.91 12.57 5.08 18.34 17.75 25.7 508 2240 1.42
80SB 1 15.875 15.88 15.75 7.19 24.39 22.61 34.1 711 4090 2.40
