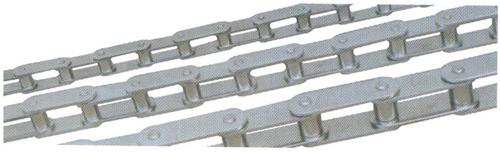

Double Pitch Roller Chain

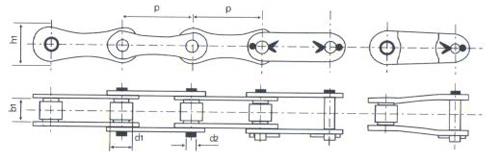

Item Pitch Roller external diameter Pin inside width Pin daimeter Plate height Max. allowable load Weight q Kg/m
JB ANSI P in P mm d1(max) mm b1(min) mm Pt mm h1(min) mm daN
208B 1" 25.40 8.51 7.75 4.45 12.07 1240 0.45
208A 2040 1" 25.40 7.92 7.85 3.96 12.33 960 0.42
210A 2050 11/4" 31.75 10.16 9.40 5.08 15.35 1520 0.70
212A 2060 11/4" 38.10 11.91 12.57 5.94 18.34 2170 1.00
216 2080 2" 50.80 15.88 15.75 7.92 24.39 3890 1.70
220A 2100 21/2" 63.50 19.05 18.90 9.53 30.48 2.55
224A 2120 3" 76.20 22.23 25.22 11.10 36.55 3.50
