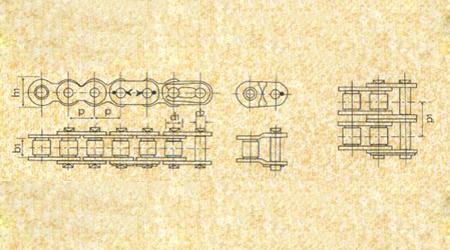

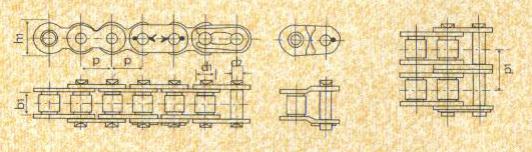

Short Pitch Roller Chain
Item Pitch Roller external diameter Pin inside width Transverse pitch Plate height Transverse pitch Max. allowable load Weight
JB ANSI P in P mm Pt mm h1(min) mm Pt mm h1(min) mm F(max) mm Single roller daN Duplex roller daN Triplex roller daN
12AH 60H 3/4" 19.05 11.91 12.57 26.11 18.34 3.18 3110 6130 9340 1.8
16AH 80H 1" 25.40 15.88 15.75 32.59 24.39 3.96 5560 11120 16680 3.0
20A11 100H 11/4" 31.75 19.05 18.60 39.09 30.48 4.75 8670 17350 26020 4.2
24AH 120H 11/4" 38.10 22.23 25.22 48.87 36.55 5.56 12460 24910 37370 6.0
28AH 140H 13/4" 44.45 25.40 25.22 52.20 42.67 6.35 16900 33810 5D710 8.1
32AH 160H 2" 50.80 28.58 31.55 61.90 48.74 7.14 22240 44480 61720 10.7
36AH 18011 21/4" 57.15 35.71 35.49 69.16 54.60 7.92 28130 56260 84390 16.1
40AH 200H 21/2" 63.50 39.68 37.85 78.31 60.93 9.52 34700 69390 104090 20.0
