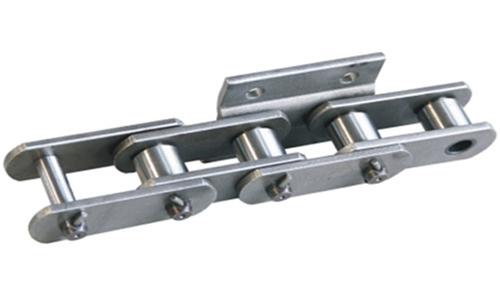

Elevator Conveyor Chain

The elevator conveyor chain is mainly used in the material transportation of cement, electricity, metallurgy, coal, mines, chemical engineering, ports and other industries. The elevator conveyor chains are also suitable for conveying in different procedures, including material transmission, mixture, screening, crushing, grinding, burning, smelting, loading and unloading.

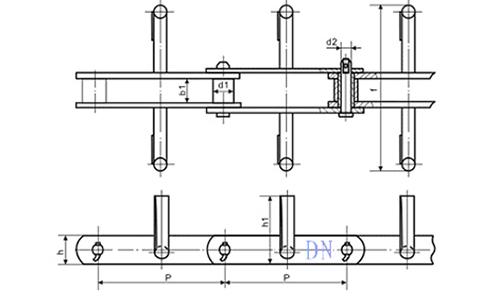

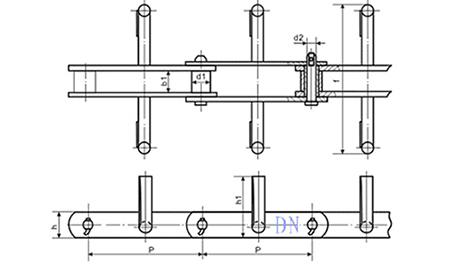

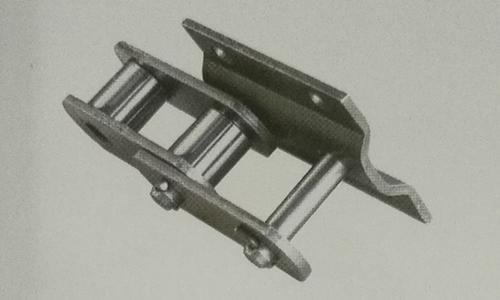

FU Type Elevator Conveyor Chain

Mainly used in the material transportation of cement, electricity, metallurgy, coal, mines, chemical engineering, ports and other industries. The FU type elevator conveyor chains are also suitable for conveying in different procedures, including material transmission, mixture, screening, crushing, grinding, burning, smelting, loading and unloading.

Item Pitch p Roller diameter d１ Pin inside width b１ Pin diameter d２ Pin length １１ Chain hook height h１ Chain hook width １２ Tensile load Ｑ
mm Kn
FU150 101.6 26.5 27 11.5 70 36 120 100
FU200 152.4 36 36.5 15.5 90 65 170 240
FU270 152.4 36 36.5 15.5 90 85 240 240
FU350 200 44.5 51.8 19.1 120 140 315 312
FU410 200 48.5 57.6 22.2 126 140 370 396
FU500 300 63.5 67.4 31.75 146 180 460 835
FU600 300 70 75 35 170 200 560 900
FU700 300 48.5 57.6 22.2 126 215 670 1100

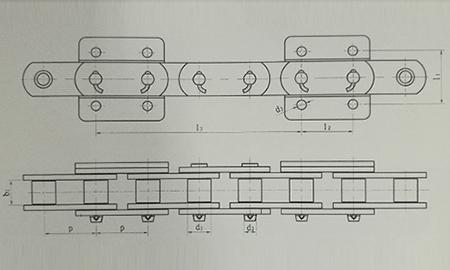

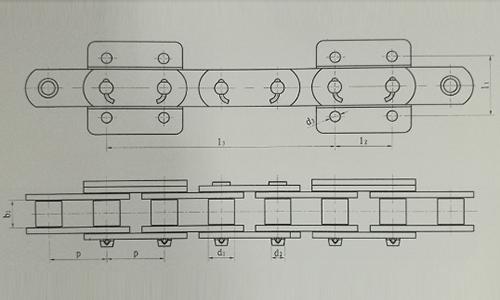

NBH Type Elevator Conveyor Chain
Item Pitch p Roller diameter d１ Pin inside width b１ Pin diameter d２ Hopper dimensions Tensile load Ｑ
１１ １２ １３ d３
mm kN
NBH300 75 34.9 37.1 15.88 80 75 300 14 236
76.2 35 37 18 80 75 304.8 14 300
150 35 37 18 80 75 300 14 300
NBH450 100 50 54 26 115 100 400 18 600
100 50 57 30 115 100 400 18 720
NBH600 125 57.2 66.7 28 110 125 500 18 650
125 60 68 36 140 125 500 18 980
NBH900 150 80 93 42 190 190 600 22 1500

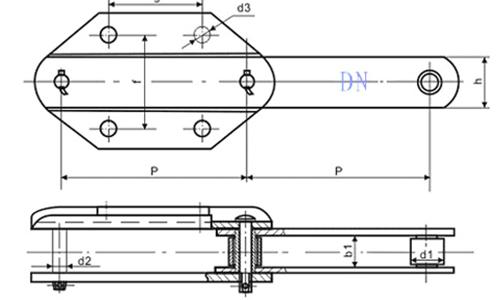

NE Type Elevator Conveyor Chain
Item Pitch p Roller diameter d１ Pin inside width b１ Pin diameter d２ Hopper dimensions Tensile load Ｑ
１１ １２ d３
mm Kn
NE50 152.4 36 36.5 15.5 75 70 14 245
NE100 200 44.5 51.8 19.1 100 80 18 313
NE150 200 48.5 57.6 22.2 100 80 18 396
NE200 250 63.5 67.4 31.75 140 100 18 925
NE300 250 70 75 35 140 100 18 1250

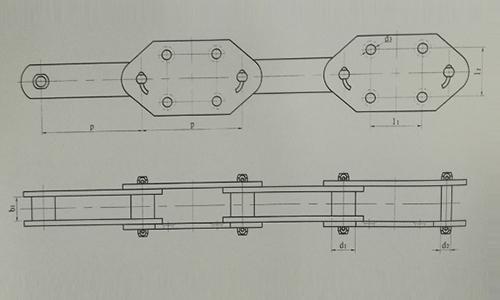

NSE Type Elevator Conveyor Chain
Item Pitch p Roller diameter d１ Pin inside width b１ Pin diameter d２ Hopper dimensions Tensile load Ｑ
１１ １２ １３ d３
mm kN
NSE100 75 36 36.5 15.5 80 75 300 15 275
NSE200 100 44.5 51.8 19.1 105 100 400 18 395
NSE300 100 48.5 57.6 25 105 100 400 18 565
NSE400 125 63.5 67.4 31.75 130 125 500 18 945
NSE500 125 70 75 35 130 125 500 18 1250
NSE600 150 75 82.5 38.5 175 150 600 18 1470
NSE700 150 75 82.5 38.5 175 150 600 18 1470
NSE900 150 75 82.5 38.5 160 150 600 22 1470
NSE1000 150 82 88.6 41.7 160 150 600 22 1500

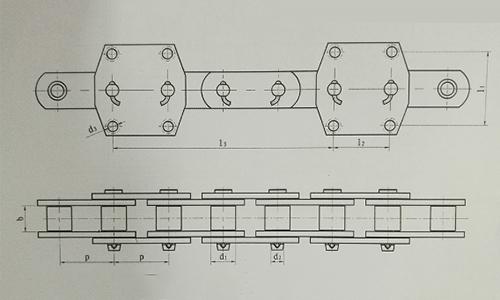

SSN Type Elevator Conveyor Chain
Item Pitch P Roller diameter D1 Pin inside width B1 Pin diameter D2 Hopper dimensions Tensile load Q
L1 L2 L3 D3
MM kN
SSN75 75 29 30 14.52 75 75 200 14 200
SSN76.2 76.2 35 37 15.88 80 75 304.8 14 220
SSN100 100 52 66.3 27 100 100 400 18 600
SSN125 125 50.8 57 24 110 125 600 22 520
SSN150 150 57.2 66.7 28 140 150 300 22 800
SSN160 160 60 56 30 100 80 320 14 740
SSN200 200 34.9 37.1 16 100 100 400 16 250
SSN250 250 57.2 66.7 28 100 125 500 18 700
SSN300 300 50.8 57 26 140 150 600 22 550
