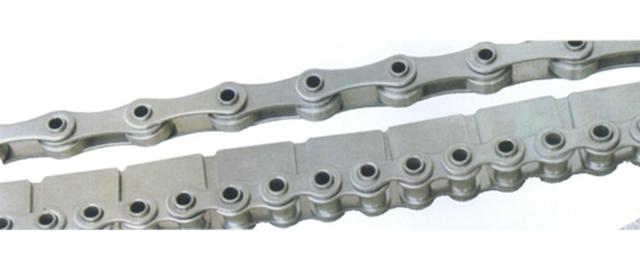

Hollow Bearing Pin Chain

Item	Pitch	Roller external diameter	Pin inside width	Pin external diameter	Pin inner diameter	Pin length	Plate height	Max. allowable load
	P mm	d1(max) mm	b1(max) mm	d2 mm	d3(min) mm	b2 mm	h2(max) mm	daN
40HP	12.7	7.92	7.85	5.63	4	16.6	12	670
08BHP	12.7	8.51	7.75	6.38	4.6	17	12	570
50HP	15.87	10.16	9.4	7.06	5.13	20.5	15	1060
60HP	19.05	11.91	12.57	8.33	5.97	25.3	18	1600
80HP	25.40	15.88	15.75	11.11	8.03	32.7	23.6	2700
2052HP	31.75	19.05	9.4	7.06	5.13	20.5	15	1060
2062HP	38.10	22.23	12.57	8.33	5.97	25.3	18	1600
2082HP	50.8	28.58	15.75	11.11	8.03	32.7	23.6	2700
