Sidewall Rubber Conveyor Belt

Duratech sidewall rubber conveyor belt has been widely used for transporting bulk materials in ports, casting, metallurgy, underground mining (coal and ore), electricity, construction, agriculture and chemical industry material conveying.

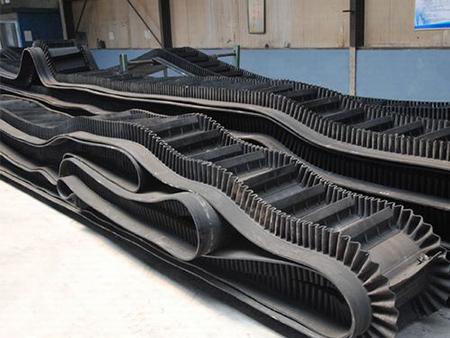

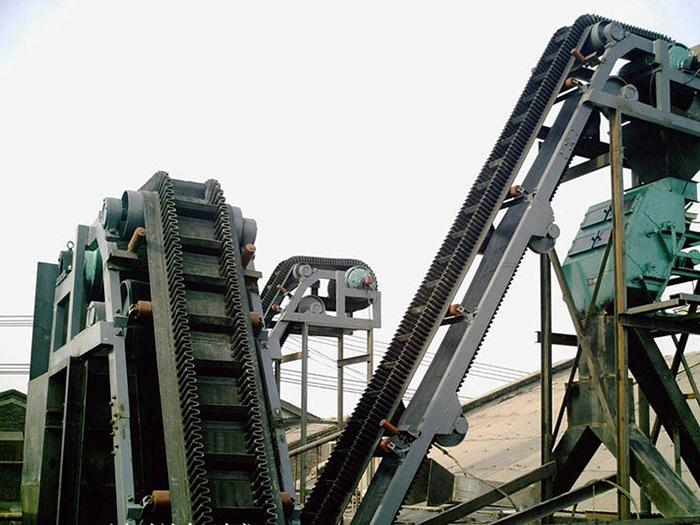

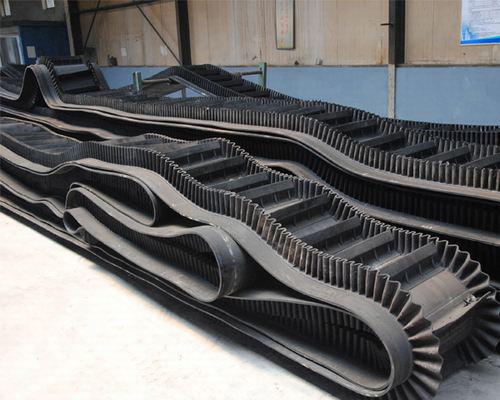

The rubber belting is capable of continuously conveying bulk goods at inclines up to 90°. It's featured by high incline angle, wide applications, no transfer points, reduced construction investment, low maintenance cost and large loading capacity. The corrugated sidewall belt can easily realize the high-incline conveying that general fabric conveyor belt or chevron rubber conveyor belt can’t achieve. The sidewall conveyor belt can be designed to a complete conveyor system, which effectively simplify the lifting system and avoids intermittent conveying.

The sidewall belt is designed for horizontal, inclined and vertical transporting of bulk materials—from coal, rock, sand, fertilizer to grain. Lump size is unlimited, varying from powdery material up to 400mm. Materials can be transported with capacities from 1m³/h to 6000 m³/h.

The corrugated sidewall belt conveyors require high tensile strength and high abrasion resistance. For sidewall belts with edge margins, the rubber belt must feature good transverse rigidity and longitudinal flexibility to satisfy the requirements of angle and direction change. Duratech sidewall base belt is specially designed with higher transverse rigidity values to ensure fast and safe movement during high capacity transport. The width of the base belt fits the general rubber conveyor belts and meets the international standards.

Specification

Carcass material: CC, CP, NN, EP etc.
Belt width: 100mm-2000mm
Layer: 2-20 layers
Rubber Cover: top cover: 1.5-15 mm, bottom cover: 0mm-6mm

Main rubber type

Type	H (mm)	BW (mm)	TW (mm)	P (mm)	Weight(kg/m)	Minimum roller diameter (mm)
S	40	30	20	25	0.58	125
	60	50	45	40	1.55	160
	80	50	45	40	1.82	200
	100	50	45	40	2.20	250
	120	50	45	40	2.65	315
MDSF	120	75	70	63.2	3.20	315
	160	75	70	63.2	4.76	400
	200	75	70	63.2	6.45	500
	240	75	70	63.2	7.50	630
	250	75	70	63.2	6.37	630
	280	75	70	63.2	8.90	800
	300	75	70	63.2	9.33	800
HHDF	300	100	90	83	12.10	800
HHDF	400	100	90	83	18.72	1000

* Sidewall fabric: Sidewalls from ≥ 120mm are reinforced with a fabric as standard and optional on lower sidewalls.
* The above roller diameters are only suitable for general and standard rubber covers. Larger rollers may be needed for specialty rubber covers and different tension requirements.
Welcome to contact us for more specifications.

Cleat series

The cleats grant the excellent performance of the sidewall rubber conveyor belts. Type C and type TC cleats provide larger conveying capacities and good self-cleaning performance.

The cleats profiles molded with Duratech specially designed rubber compounds feature high rigidity and high impact resistance and they not easy to deform even when loading high-density materials.

Generally, Type T cleats are utilized when incline angle ≤40°; Type C, TC and TCS for incline angle >40°. The spacing between cleat profiles is adjustable to fit the wave peak of the corrugated sidewalls. In combination with the base belt bolt-up device, materials spillage from the gap of cleat and sidewall is prevented and dead corner of material discharge is eliminated.

Cleat type	Cleat height (mm)	Cleat bottom width (mm)	Weight (kg/m)	Minimum roller diameter (mm)
C	55	75	1.60	125
	75	90	1.90	150
	90	110	2.50	250
	110	110	2.60	315
T	40	70	0.78	125
	55	80	1.50	125
	75	100	1.65	150
	90	110	2.50	250
	110	105	2.63	315
	140	110	3.50	400
	180	110	4.70	500
TC	75	85	2.10	150
	90	110	2.95	250
	110	110	3.68	315
	140	150	5.94	400
	180	148	7.20	500
	230	157	9.30	630
	280	160	13.45	800
TCS	230	105	9.55	630
	280	105	15.40	800
	360	200	22.80	1000
	470	200	23.30	1250

* Cleat fabric: Cleats from ≥ 110mm are reinforced with a fabric as standard and optional on lower cleats.
