PP Conveyor Belt

The PP conveyor belt features warp and weft polyester fabrics as carcass. Low elongation, good water resistance and heat resistance. There are a variety of fabrics available: PP-100, PP-150, PP-200, PP-300, PP-350, PP-400, PP-500.

Applications

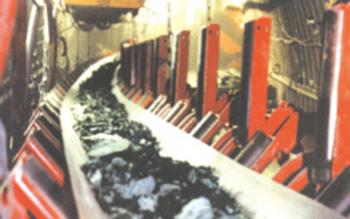

Heavy duty, high speed, medium-or long-distance conveyance.

Specifications

The cover rubber can be divided into three types according to their performance: L-general, D-abrasion resistant, H-crack resistant.

Technical parameters
Item L D H
Cover rubber Tensile strength (MPa≥) 15.0 18.0 24.0
Elongation at break (%≥) 350 400 450
Abrasion loss (mm3≤) 200 100 120
Adhesive strength (N/mm≥) Between layer and layer 4.5
Cover layer and carcass Cover layer thickness: 0.8－1.5mm 3.2
Cover layer thickness>1.5mm 3.5
