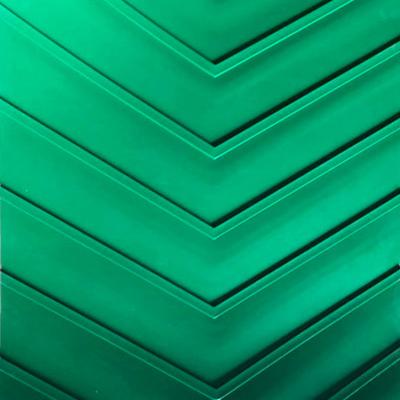

Chevron PVC Conveyor Belt

Applications: feeding conveyors, transportation conveyors

Processing: high temperature vulcanization, one-piece molding

Dimension: customizable and width up to 2m.

Parameters
Colour Green Pattern Chevron

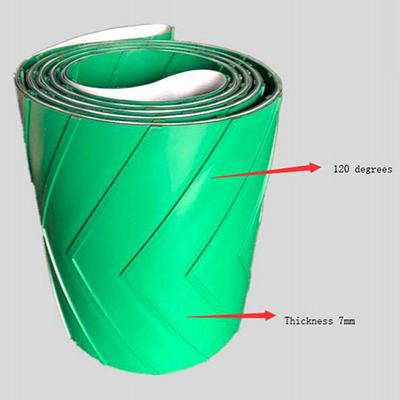

Total thickness (mm) 7 Structure Two fabric ply and two rubber ply
Material PVC Min. pulley diameter (mm) 150
Surface coating rigidity (Shore A) 75 Operating temperature (℃) -10 -+80
Tension for 1% elongation (N/mm) 12 Conveying mode (R=roller S=slab T=trough) RST
Width (mm) 2000 Lateral stability Yes
Number of layers 4 layers Tensile strength (N/mm) ≧140
Food grade No Low noise No
Total weight (Kg/M2) 8.5 Splice Seamless hot splicing/fastening
