Applications: electronic components, automation and logistics transportation.

Specifications: dimension and surface pattern are customizable.

Model	Thickness (mm)	Material	Color	Rigidity	Structure	Min. pulley diameter (mm)	Tension for 1% elongation (N)	Tensile strength (N/mm)	Operating temperature(℃)

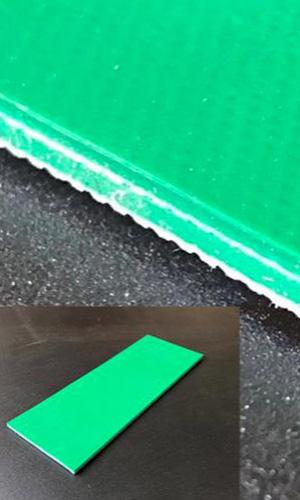

11P1/WD	1	PVC	Green White Deep green Sky blue Black Grey	75	1 fabric 1 rubber	20	4	50	-10~＋80

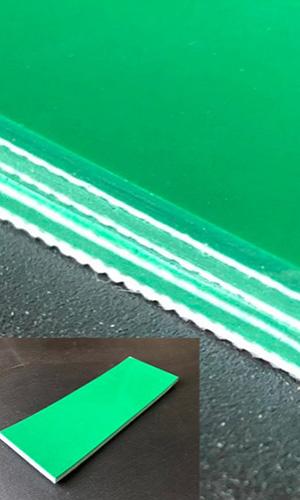

21P1.5/WD	1.5				Two fabric two rubber	40	5	80
21P2/WD	2				Two fabric two rubber	40	8	120
21P3/WD	3				Two fabric two rubber	60	8	100
31P4/WD	4				Three fabric three rubber	80	12	150
31P5/WD	5				Three fabric three rubber	100	12	150
41P6/WD	6				Four fabric four rubber	150	15	180
51P8/WD	8				Five fabric five rubber	220	20	230
